Actuated Aluminium Butterfly Valve
Actuated Damper Butterfly Valve
Design Features – Pneumatic & Electric Actuated Damper Butterfly Valve
| Specification | Details |
|---|---|
| Model No. | NXADBV / NXADBV-A |
| Valve Type | Actuated Damper Butterfly Valve |
| Body Material | Carbon Steel / SS304 / SS316 / MS Fabricated |
| Valve Design | Damper Type Butterfly Valve Construction |
| Size Range | 80mm to 2000mm (3″ to 80″) |
| End Connection | Flanged / Wafer / Customized |
| Pressure Class | Low Pressure / Process Duty |
| Operation | Pneumatic Actuated & Electric Actuated |
| Actuator Mounting | ISO 5211 Direct Mounting |
| Disc Design | Damper Type Disc |
| Seat Material | Metal Seated / High Temperature Seal |
| Valve Bore | Full Flow |
| Operating Temperature | -20°C to +450°C |
| Testing Standard | API 598 |
| Working Media | Air, Gas, Dust, Fumes & Process Media |
| Automation Option | Pneumatic & Electric Actuator Compatible |
Description – Pneumatic & Electric Actuated Damper Butterfly Valve
The Actuated Damper Butterfly Valve is specifically designed for automated flow regulation of air, gas, fumes, dust, and process media in industrial systems. Equipped with pneumatic or electric actuators, the valve delivers precise opening and closing control, ensuring reliable performance and efficient process automation under demanding operating conditions.
Manufactured using premium-quality materials and precision engineering, the valve provides exceptional durability, corrosion resistance, smooth operation, and low maintenance. Its robust damper disc design is ideal for handling high-temperature air and gas applications while maintaining consistent flow regulation and dependable shut-off performance.
Designed with ISO 5211 direct mounting, the valve allows easy integration with pneumatic and electric actuators, making it suitable for modern industrial automation systems. It is widely used in HVAC systems, boilers, furnaces, cement plants, power plants, chemical processing facilities, dust collection systems, flue gas handling, and other industrial process applications.
Key Features
- Heavy Duty Damper Type Disc Construction
- Accurate Automated Flow Control
- Suitable for Air, Gas, Dust & Fume Applications
- High Temperature Resistant Design
- Corrosion Resistant Construction
- Smooth & Reliable Actuator Operation
- Low Maintenance & Long Service Life
- ISO 5211 Direct Mounting for Easy Automation
- Compatible with Pneumatic & Electric Actuators
- Ideal for Continuous Industrial Operation
Applications
- HVAC Systems
- Boilers & Furnaces
- Cement Plants
- Power Generation Plants
- Chemical Processing Industries
- Steel & Metal Processing Plants
- Dust Collection Systems
- Flue Gas & Exhaust Systems
- Air Handling & Ventilation Systems
- Industrial Process Automation

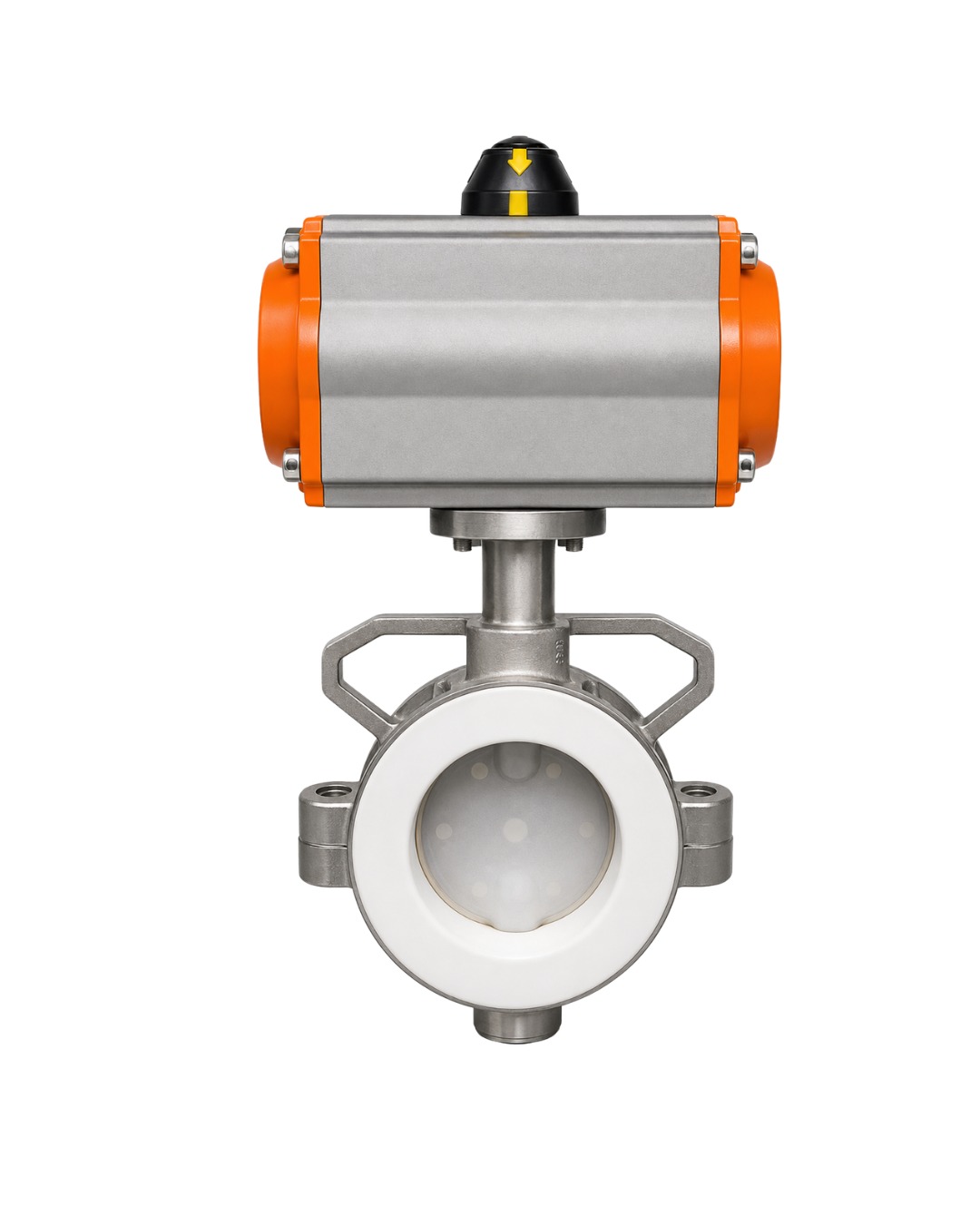

Actuated Lined Butterfly Valve
Batching Plant Butterfly Valve

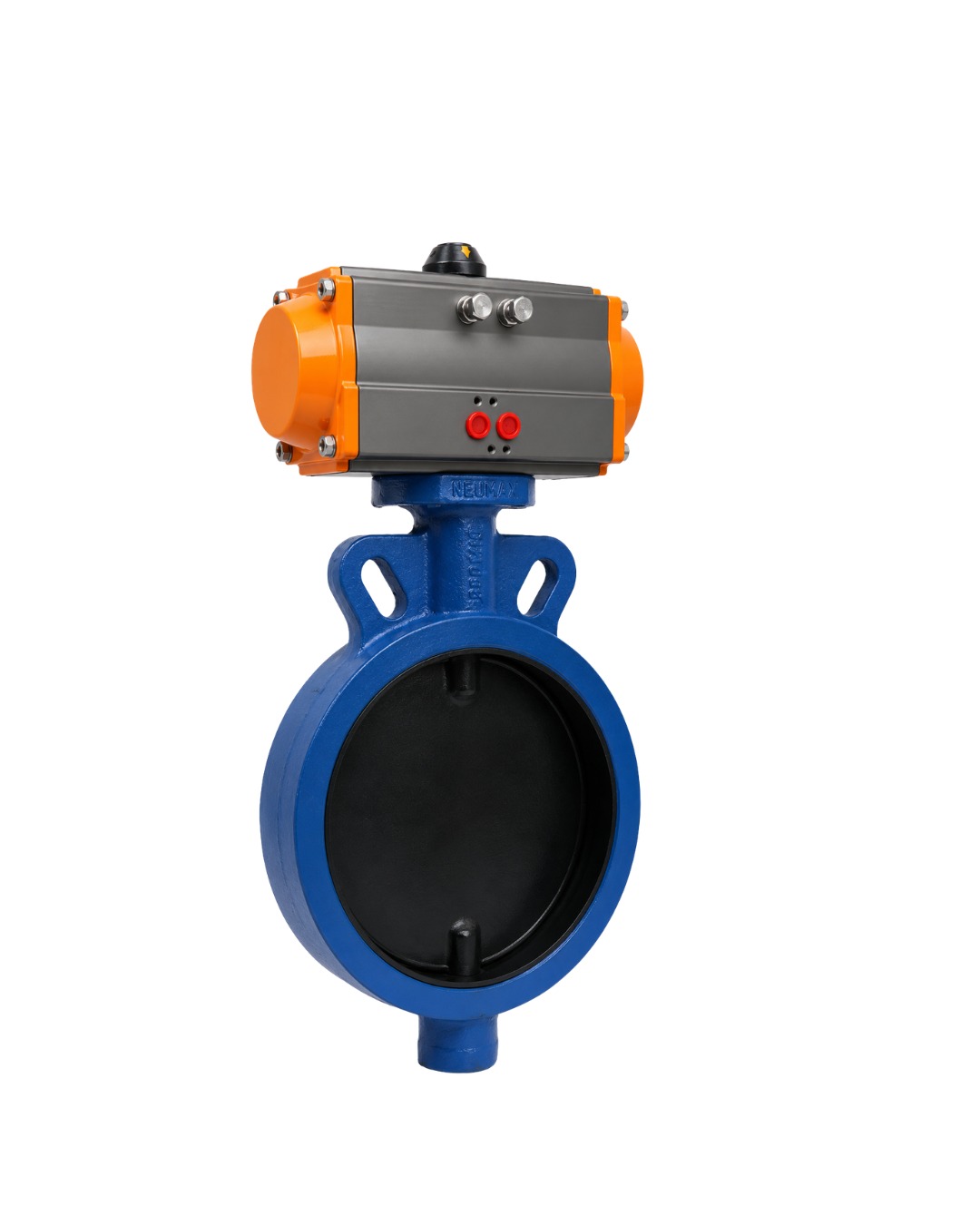

Centric Disc Butterfly Valve
Centric Double Flange Butterfly Valve
High Performance Flow Control with Superior Sealing
The Manual (Hand Lever / Gear), Pneumatic & Electric Actuated Double Eccentric Butterfly Valve is engineered for reliable shut-off and efficient flow regulation in high-pressure and high-temperature industrial applications. Its double eccentric (double offset) disc design minimizes seat contact during operation, significantly reducing wear, lowering operating torque, and extending valve service life.
Manufactured using premium-grade ductile iron, carbon steel, and stainless steel materials, this valve delivers excellent corrosion resistance, dependable sealing performance, and smooth quarter-turn operation under demanding operating conditions. Available in manual, pneumatic, and electric actuation options, it is ideal for both conventional isolation duties and automated process control systems.
Key Features
✔ Double Eccentric (Double Offset) Disc Design
✔ Reduced Seat Wear & Low Operating Torque
✔ Bubble Tight Leak-Proof Sealing
✔ High Pressure & High Temperature Capability
✔ Corrosion Resistant Construction
✔ Full Flow Design for Minimum Pressure Loss
✔ Smooth Quarter Turn Operation
✔ Long Service Life with Low Maintenance
✔ ISO 5211 Mounting for Automation
✔ Available in Manual, Pneumatic & Electric Actuation
Applications
- Water Treatment Plants
- Oil & Gas Industries
- Chemical Processing Industries
- Steam Distribution Systems
- Petrochemical Industries
- Power Generation Plants
- Marine Applications
- HVAC Systems
- Industrial Utility Services
- General Process Industries
Design Features – Manual (Hand Lever / Gear), Pneumatic & Electric Actuated Double Eccentric Butterfly Valve
| Specification | Details |
|---|---|
| Model No. | NXDEBV / NXDEBV-A |
| Valve Type | Double Eccentric Butterfly Valve |
| Body Material (MOC) | Ductile Iron / WCB / CF8 / CF8M / SS304 / SS316 |
| Size Range | 50 mm to 1200 mm (2″ to 48″) |
| End Connection | Wafer / Lug / Flanged |
| Pressure Class | PN10 / PN16 / ANSI 150# / ANSI 300# |
| Operating Temperature | -20°C to +425°C |
| Disc Design | Double Eccentric (Double Offset) Disc |
| Seat Material | PTFE / Metal Seated / EPDM / Viton |
| Valve Bore | Full Flow |
| Operation | Manual (Hand Lever / Gear), Pneumatic Actuated & Electric Actuated |
| Testing Standard | API 598 |
| Actuator Mounting | ISO 5211 Direct Mounting Pad |
| Working Media | Water, Oil, Gas, Steam & Chemicals |
| Automation Option | Pneumatic & Electric Actuator Compatible |
Technical Specifications – Manual (Hand Lever / Gear), Pneumatic & Electric Actuated Double Eccentric Butterfly Valve
| No. | Description | Material |
|---|---|---|
| 1 | Body | Ductile Iron / WCB / CF8 / CF8M |
| 2 | Disc | SS304 / SS316 / WCB |
| 3 | Seat | PTFE / Metal Seated / EPDM / Viton |
| 4 | Stem | SS410 / SS304 / SS316 |
| 5 | Stem Bush | PTFE / Bronze |
| 6 | O-Ring / Stem Seal | NBR / EPDM / Viton |
| 7 | Thrust Washer | PTFE |
| 8 | Operating System | Manual Hand Lever / Gear Operator / Pneumatic Actuator / Electric Actuator |
| 9 | Hand Lever / Gearbox (Manual Model) | Cast Iron / Ductile Iron / Powder Coated Steel |
| 10 | Stop Plate / Locking Device | Carbon Steel / Stainless Steel |
| 11 | End Connection | Wafer / Lug / Flanged |
| 12 | Fasteners | SS304 / High Tensile Alloy Steel |
Centric Lug Type Butterfly Valve

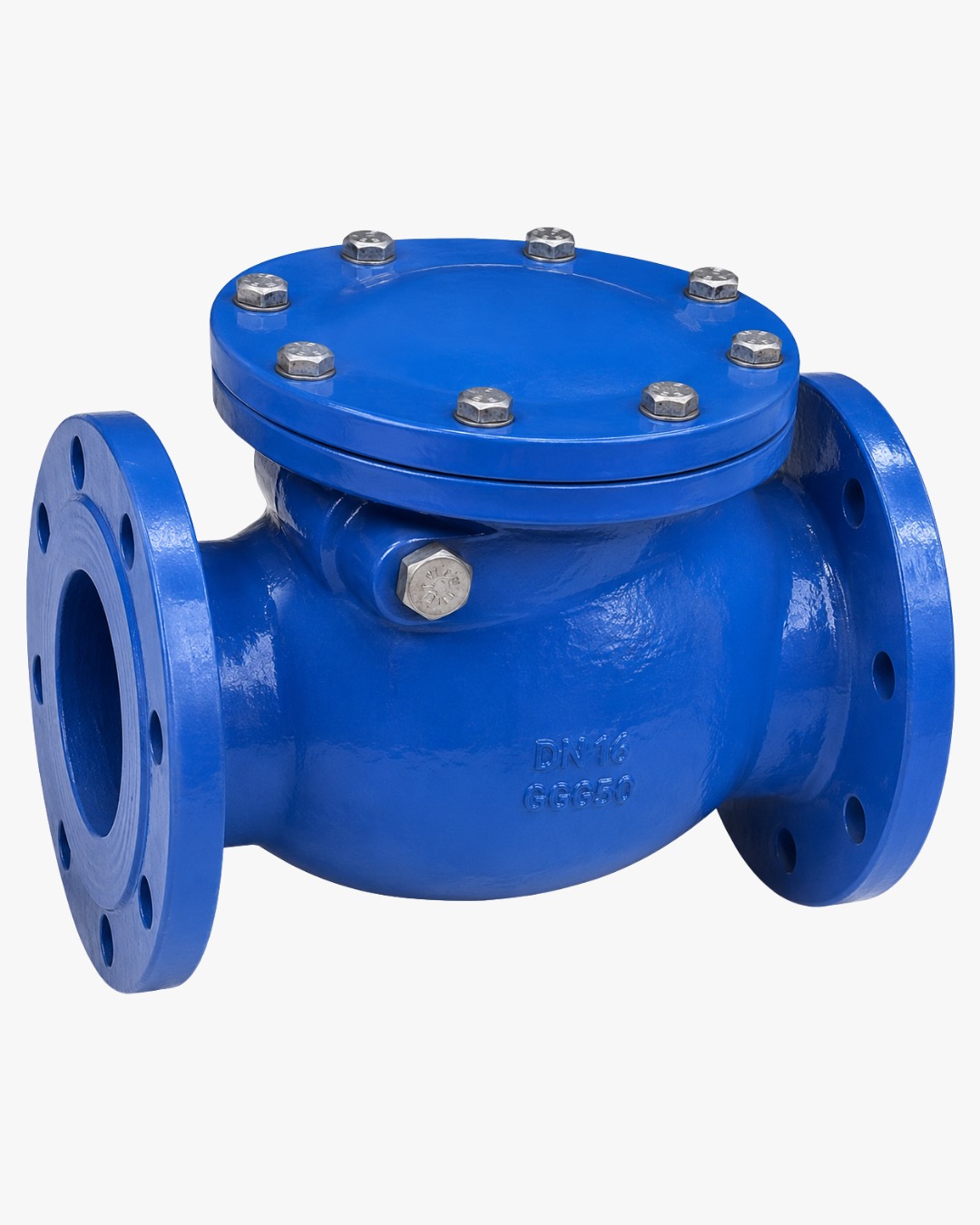

Swing Check valve
