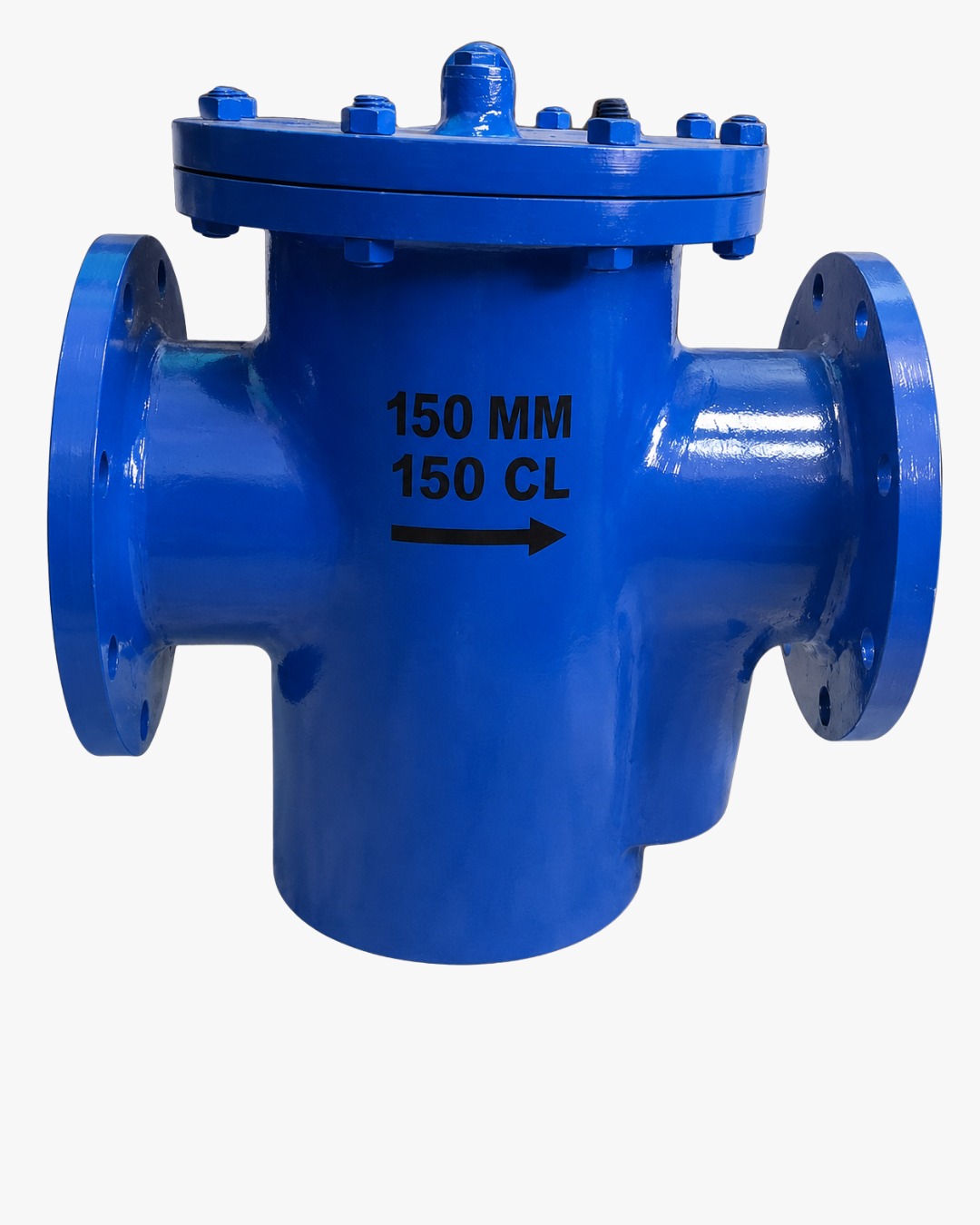

Basket Type Strainer

Products & Services

Basket Type Strainer
Basket Type Strainer - Image 2
Basket Type Strainer - Image 3
Basket Type Strainer - Image 4
Basket Type Strainer - Image 5
Basket Type Strainer - Image 6

Basket Type Strainer

Specification Details
MODEL NO. NXBTS / NXBTS-A
VALVE TYPE BASKET TYPE STRAINER
BODY MATERIAL CAST IRON / WCB / CF8 / CF8M / SS304 / SS316
SIZE RANGE 25mm to 600mm (1” to 24”)
END CONNECTION FLANGED / THREADED
PRESSURE CLASS ANSI 150# / 300# / 600#
OPERATING TEMPERATURE -20°C to +425°C
SCREEN MATERIAL SS304 / SS316 PERFORATED SCREEN
MESH TYPE STANDARD / FINE MESH
FLOW DESIGN BASKET TYPE FILTRATION DESIGN
TESTING STANDARD API 598
MOUNTING INDUSTRIAL DUTY DESIGN
APPLICATION WATER / OIL / GAS / STEAM / CHEMICAL

Description – BASKET TYPE STRAINER

The Basket Type Strainer is designed to remove dirt, debris, and unwanted solid particles from industrial pipeline systems to protect pumps, valves, meters, and process equipment from damage. Its basket-shaped filtration element provides a large filtration area, ensuring efficient flow with minimal pressure drop and easy maintenance.

Manufactured using premium-quality materials and precision engineering, the strainer offers excellent durability, corrosion resistance, and reliable performance under demanding industrial conditions. It is widely used in water treatment plants, oil & gas industries, steam systems, chemical processing plants, and industrial utility applications for effective filtration and equipment protection.

Duplex Strainer
Duplex Strainer - Image 2
Duplex Strainer - Image 3

Duplex Strainer

Specification Details
MODEL NO. NXDS / NXDS-A
VALVE TYPE DUPLEX STRAINER
BODY MATERIAL CAST IRON / WCB / CF8 / CF8M / SS304 / SS316
SIZE RANGE 25mm to 600mm (1” to 24”)
END CONNECTION FLANGED
PRESSURE CLASS ANSI 150# / 300# / 600#
OPERATING TEMPERATURE -20°C to +425°C
SCREEN MATERIAL SS304 / SS316 PERFORATED SCREEN
MESH TYPE STANDARD / FINE MESH
FLOW DESIGN DUAL BASKET CONTINUOUS FILTRATION DESIGN
TESTING STANDARD API 598
MOUNTING INDUSTRIAL DUTY DESIGN
APPLICATION WATER / OIL / GAS / STEAM / CHEMICAL

Description – DUPLEX STRAINER

The Duplex Strainer is designed for continuous filtration in industrial pipeline systems without interrupting flow during maintenance or cleaning. Its dual basket design allows one chamber to operate while the other is cleaned, ensuring uninterrupted system performance and efficient filtration.

Manufactured using premium-quality materials and precision engineering, the strainer offers excellent durability, corrosion resistance, and reliable filtration under demanding industrial conditions. It is widely used in water treatment plants, oil & gas industries, steam systems, chemical processing plants, marine applications, and industrial utility services for effective debris removal and equipment protection.

Pot Type Strainer
Pot Type Strainer - Image 2

Pot Type Strainer

Specification Details
MODEL NO. NXPTS / NXPTS-A
VALVE TYPE POT TYPE STRAINER
BODY MATERIAL CAST IRON / WCB / CF8 / CF8M / SS304 / SS316
SIZE RANGE 25mm to 600mm (1” to 24”)
END CONNECTION FLANGED / THREADED
PRESSURE CLASS ANSI 150# / 300# / 600#
OPERATING TEMPERATURE -20°C to +425°C
SCREEN MATERIAL SS304 / SS316 PERFORATED SCREEN
MESH TYPE STANDARD / FINE MESH
FLOW DESIGN POT TYPE FILTRATION DESIGN
TESTING STANDARD API 598
MOUNTING INDUSTRIAL DUTY DESIGN
APPLICATION WATER / OIL / GAS / STEAM / CHEMICAL

Description – POT TYPE STRAINER

The Pot Type Strainer is designed to remove dirt, debris, and solid particles from industrial pipeline systems to protect pumps, valves, meters, and process equipment from damage. Its pot-shaped body design provides a larger filtration area, ensuring efficient filtration, smooth flow performance, and easy cleaning with minimal pressure drop.

Manufactured using premium-quality materials and precision engineering, the strainer offers excellent durability, corrosion resistance, and reliable performance under demanding industrial conditions. It is widely used in water treatment plants, oil & gas industries, steam systems, chemical processing plants, and industrial utility applications for efficient filtration and equipment protection.

Y Type Strainer

Y Type Strainer

Specification Details
MODEL NO. NXYTS / NXYTS-A
VALVE TYPE Y TYPE STRAINER
BODY MATERIAL CAST IRON / WCB / CF8 / CF8M / SS304 / SS316
SIZE RANGE 15mm to 600mm (½” to 24”)
END CONNECTION FLANGED / THREADED / BUTT WELD
PRESSURE CLASS ANSI 150# / 300# / 600#
OPERATING TEMPERATURE -20°C to +425°C
SCREEN MATERIAL SS304 / SS316 PERFORATED SCREEN
MESH TYPE STANDARD / FINE MESH
FLOW DESIGN Y PATTERN FLOW DESIGN
TESTING STANDARD API 598
MOUNTING INDUSTRIAL DUTY DESIGN
APPLICATION WATER / OIL / GAS / STEAM / CHEMICAL

Description – Y TYPE STRAINER

The Y Type Strainer is designed to remove unwanted solid particles, debris, and impurities from pipeline systems to protect valves, pumps, meters, and other equipment from damage. Its compact Y-pattern design ensures efficient filtration with minimal pressure drop and smooth flow performance.

Manufactured using premium-quality materials and precision engineering, the strainer offers excellent durability, corrosion resistance, and long service life under demanding industrial conditions. It is widely used in water treatment plants, steam lines, oil & gas industries, chemical processing systems, and industrial utility applications for reliable filtration and equipment protection.
